GPS Tracking Units

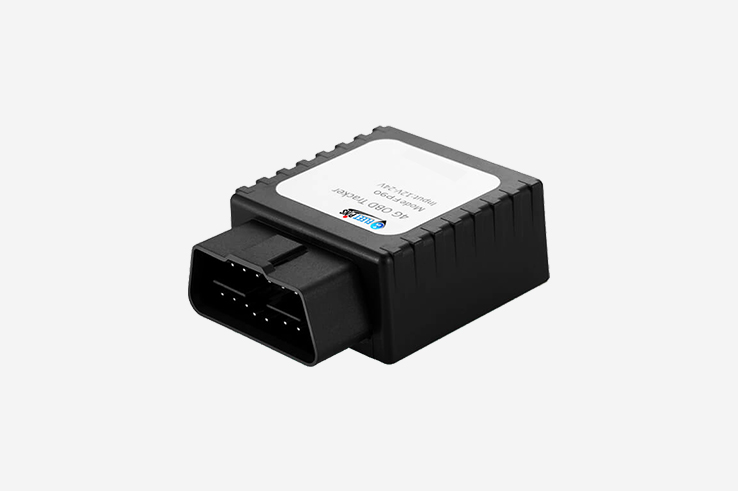

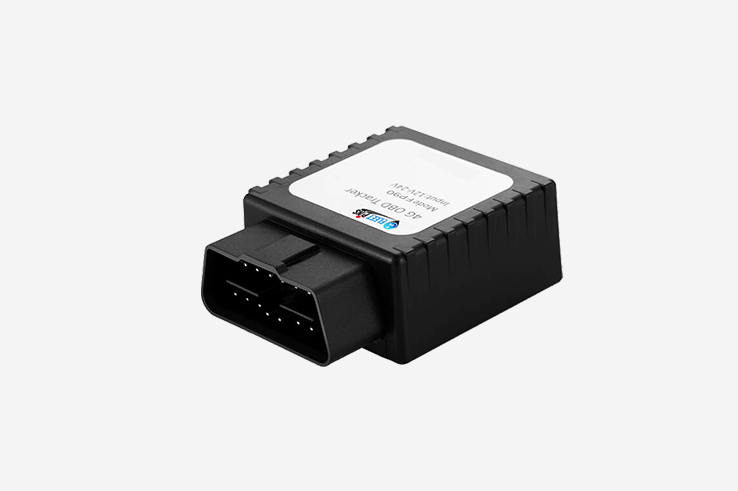

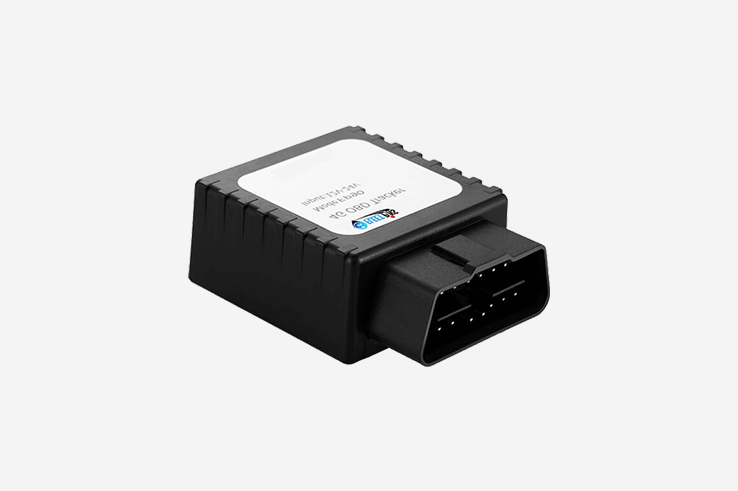

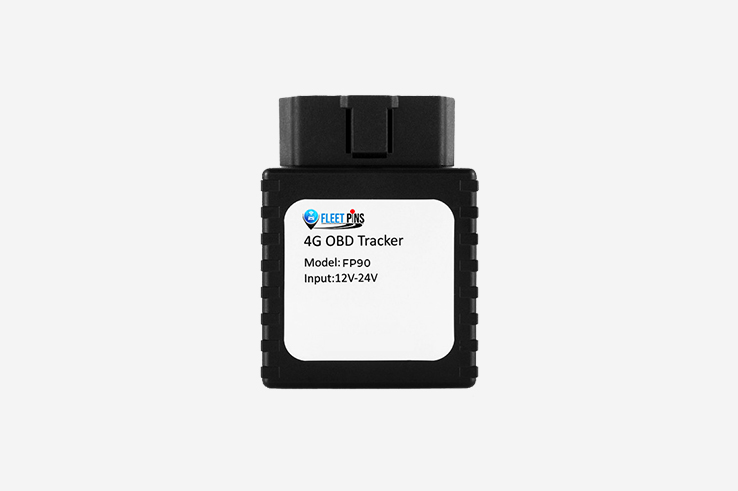

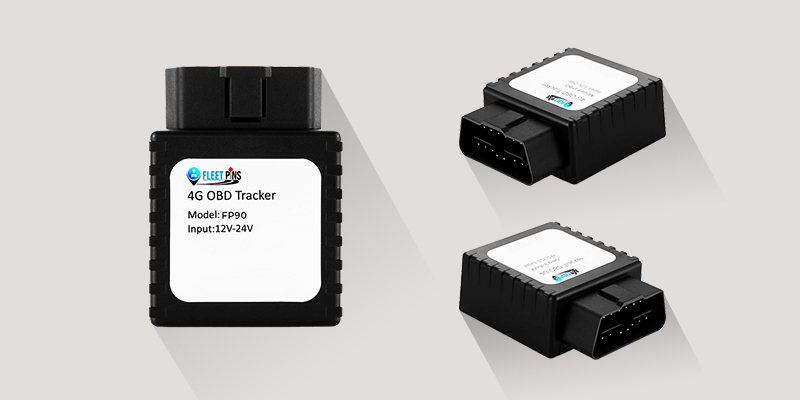

4G OBD II GPS Tracker FP90
The FP90 is a plug-and-play 4G OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, the user also can real time tracking and check the historical route travelled.
Vehicle/Truck Tracking
Fleet Management
Asset Security
4G FDD LTE network support (also support 3G/2G network)
OBD II connector easy to install (Plug and Play)
Real-time position acquiring
Vehicle trip history and mileage data on web tracking platform
Geo-Fence alarm and reporting
Vehicle towing / Movement alarm
Over-Speed alarm and reporting
Remove and disconnect alarm
Backup battery low power alarm
Car battery low power alarm
High temperature alarm
Power saving / sleep mode
Mileage report
Qualcomm 4G LTE chip solutions
Easy installation Plug and Play
Item |
Specification |
|---|---|
Dimension
|
90(L)*70(W)*24(H)mm
|
Weight
|
138g
|
Input Voltage
|
12-36 VDC
|
Backup battery
|
3.7V 500 mAh
|
Power Consumption
|
50mA standby current at 12 V
|
Working temperature
|
-20°C to +55°C
|
Humidity
|
5% to 95% non-concretion
|
Working hours
|
10 hours in power-saving mode, 4 hours in normal mode
|
LED
|
4G(blue), GPS(green), Power(red)
|
Microphone & Speaker
|
External (optional)
|
Sensor
|
3D accelerometer sensor, temperature sensor
|
Antenna
|
external 4G/GPS antenna
|
GPS sensitivity
|
-162dBm
|
Positioning Accuracy
|
2.5m
|
4G Frequency bands
|
FP600 Plus A (US/Canada/Mexico) 4G LTE: B2/B4/B12 3G WCDMA: 850/1700/1900MHz
|
I/O Port
|
2 digital inputs (12-24V), 2 digital output (12-24V) 1 analog inputs (0-5V) Fuel sensor 1 Audio 1 USB port 1-Wire® temperature sensor
|
