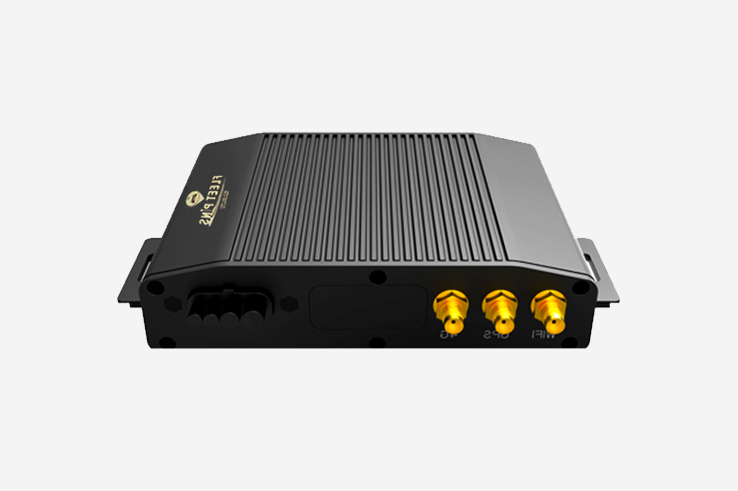

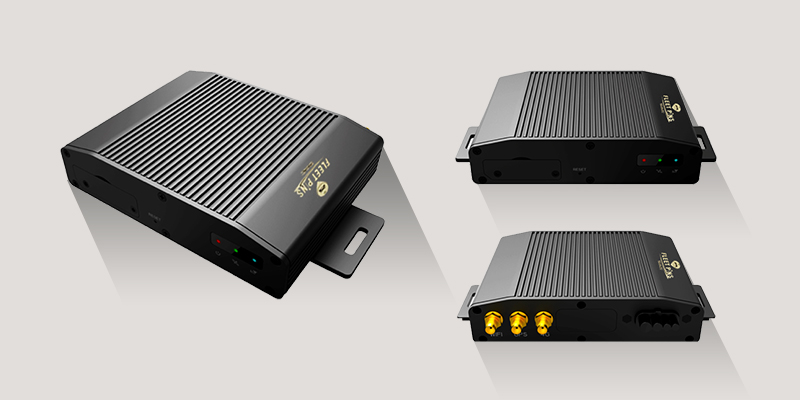

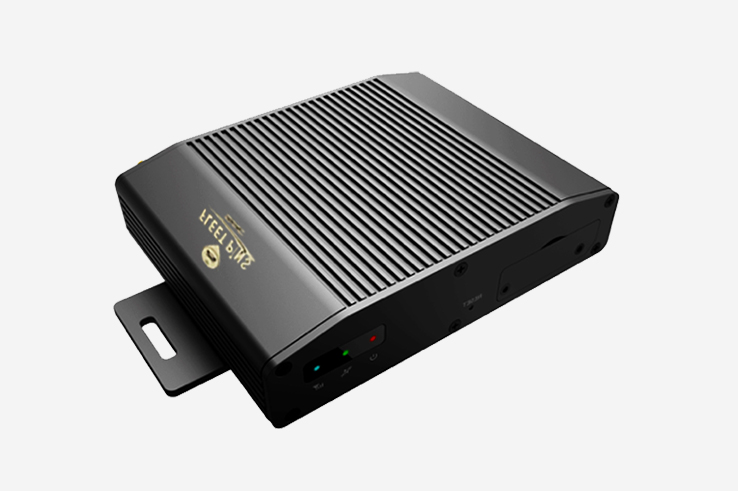

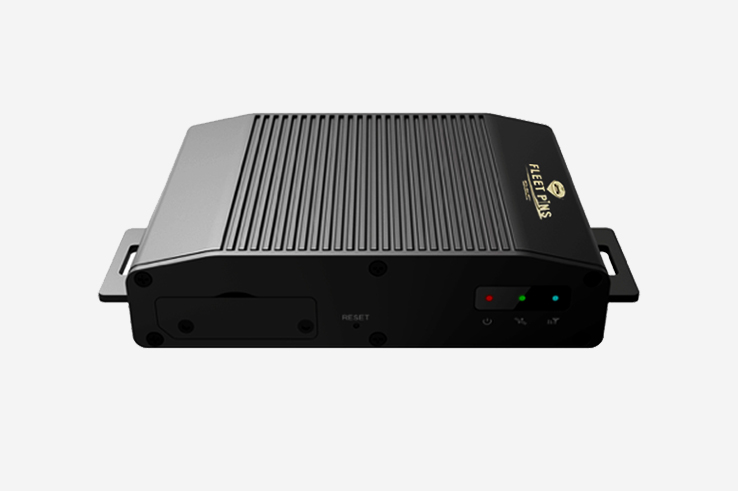

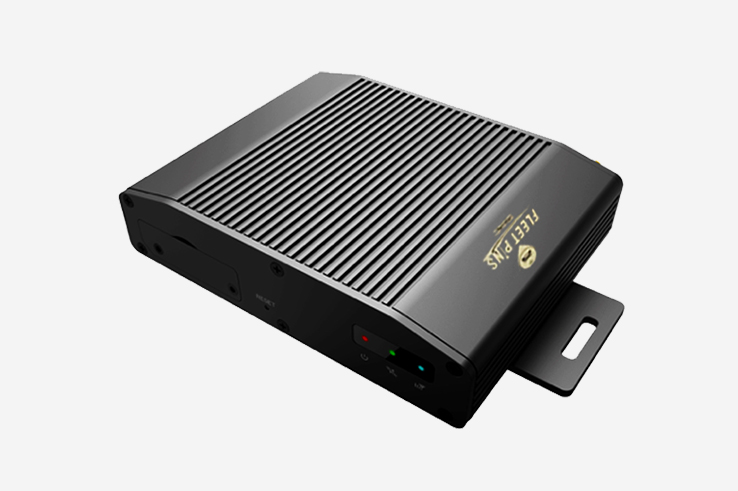

FP500 is a multi-functional DVR suitable for heavy duty vehicle video telematics. The device has multiple sockets to support different types of external devices to provide the best fleet management solutions.
MDVR-FP-500
LTE
LTE
4G network coverage with fallback to 3G and 2G.
WiFi Hotspot
WiFi Hotspot
Stay connected, across all your devices.
Panic Button
Panic Button
It allows drivers to alert fleet managers in the event of an emergency or compromising situation.
2x Cameras
2x Cameras
Front camera 720P; Inward/ Rear camera 1080P, open for Driver's fatigue driving detection.
Remote Engine Cut-off
Remote Engine Cut-off
Protect your vehicles with the flip of a switch.
Live Streaming Video
Live Streaming Video
It helps protect your fleet against vandalism, theft, and accidents.
Support Various External Devices
With two RS232 UART, you can connect multiple external terminals, such as：RFID reader, Fuel sensor, Load sensor, temperature sensor.
Event Video to Cloud
In the event of a serious accident, collision or improper driving behavior, the video will be automatically transmitted. With the 4G connection, you can get faster data speed and larger network coverage, and respond immediately.
Driver Behaviour Monitoring
Control the driver's driving dynamics, rationalize the driver's behaviors such as harsh acceleration, rapid deceleration, and hard braking to reduce the accident rate and improve fuel economy of the fleet.
Comprehensive Protection of Drivers and Assets
Cameras help you stay connected to the drivers in your fleet by accurately tracking their performance. They can help drivers advance their skills and make better decisions, also can protect against false claims and unexplained damage to guard your assets
| Category | Item | Specification | Remark |
| Main Chips | OS | Android 8.1 GO | |
| System | ARM Cortex A53, 2GB+16GB | ||
| Network band | LTE/WCDMA/GSM | FDD_LTE: B1/B2/B3/B4/B5/B7/B8 /B17/B20 | |
| Features | DVR | Two-channel video recording simultaneously | H.264 encoding; |
| Loop-Recording; | |||
| MP4 | |||
| Live view | In-car/front-car live video streaming via APP | RTMP live stream | |
| Remote video/picture | √ | ||
| Video playback | √ | Playback the history videos pre-stored in TF card | |
| Voice monitoring | √ | ||
| Interface | RS232 | √ | Open for RFID reader, Fuel sensor, CANBUS data transmitting, OBD data transmitting |
| SOS | Panic button | ||
| ACC detection | √ | ||
| ADC | 12V/24V | ||
| Remote engine cut-off | √ | ||
| USB data interface | √ | ||
| Hardware | Cameras | Front camera | HD 720P, viewing angle 100° |
| Inward/ Rear camera | AHD, 1080P, viewing angle 120° , cable length maxim 10M, open for Driver's fatigue driving detection. | ||
| Wi-Fi | IEEE802.11 b/g/n | ||
| Bluetooth | Data transferring | BT4.0, open for ibeacon, TPMS, OBD etc. | |
| G-Sensor | √ | ||
| Light-Sensor | √ | ||
| Gyroscope | √ | ||
| Battery | External battery | lithium Polymer battery, 600mAh | |
| GPS antenna | External | ||
| MIC & Speaker | √ | ||
| TF card | Max 128GB | ||
| Working temperature | -20℃ ～+70℃ |
