GPS Tracking Units

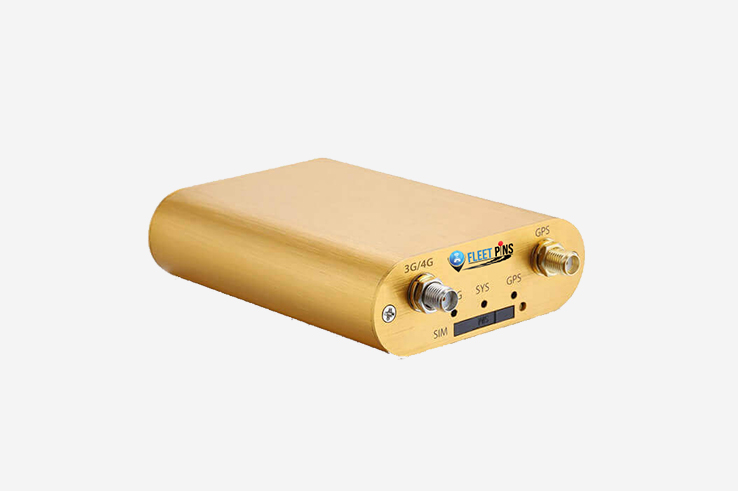

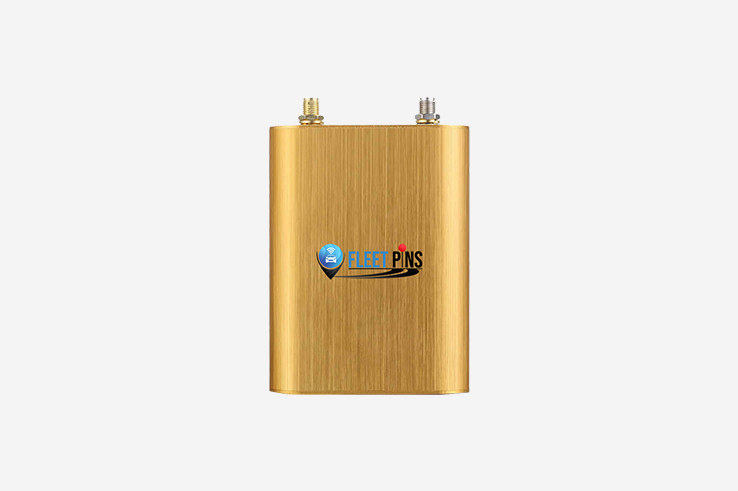

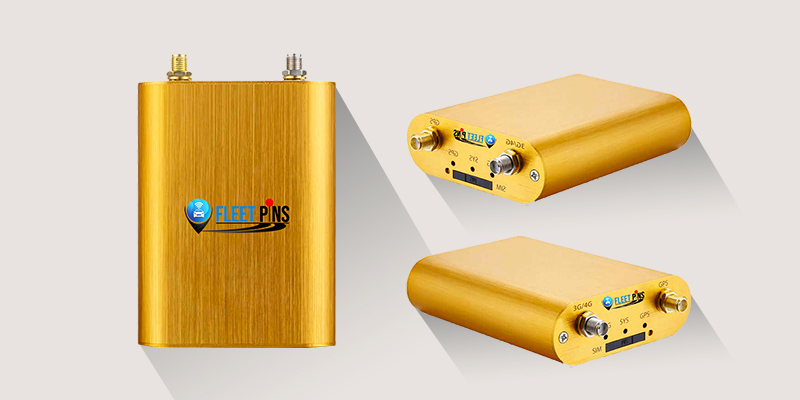

4G LTE GPS Tracker FP600 Plus
FP600 Plus is a multifunctional 4G GPS tracker, fully supporting 4G LTE mobile networks, and also can extend to support Fuel sensor, temperature sensor, door sensor, siren, Mic and Speaker. It is commonly used to track and locate individual vehicles, motorbikes or boats, and is a valuable tool for enhanced fleet management. The MT600 Plus has an excellent track record for stable performance and possesses a wide variety of features.
Yachts and Boats tracking
Vehicle/Truck tracking
Asset Security
4G LTE Network
Support 4G LTE & 3G WCDMA, no 2G worries.
Two way audio/listen in
External speaker and microphone, two way audio /listen in can be realized.
Multiple alert & reports
Support SOS/low power/speeding/towing/geo-fence alert, ACC/mileage reports.
Multipfunctional
Support microphone, speaker, temperature sensor, fuel sensor, door sensor and siren.
Qualcomm 4G LTE chip
Customize mode to support global
Extend I/O Multifunctional
IOS & Android support
Protocol is open and compatible other third party platform
White Label
Item |
Specification |
|---|---|
Dimension
|
90(L)*70(W)*24(H)mm
|
Weight
|
138g
|
Input Voltage
|
12-36 VDC
|
Backup battery
|
3.7V 500 mAh
|
Power Consumption
|
50mA standby current at 12 V
|
Working temperature
|
-20°C to +55°C
|
Humidity
|
5% to 95% non-concretion
|
Working hours
|
10 hours in power-saving mode, 4 hours in normal mode
|

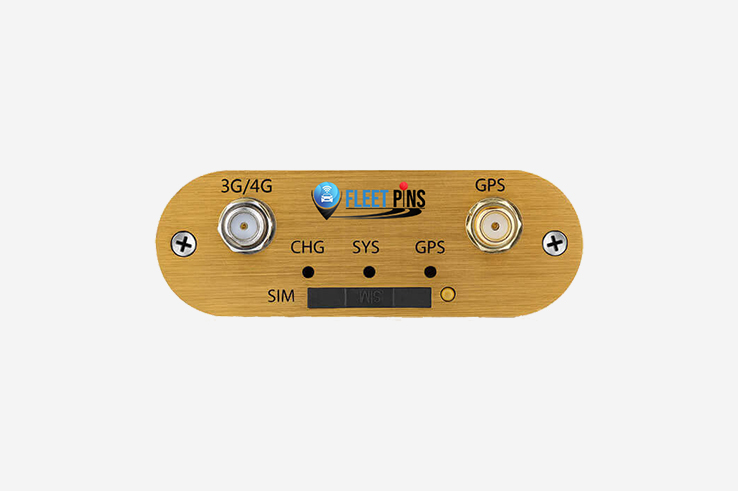

LED
|
4G(blue), GPS(green), Power(red)
|
Microphone & Speaker
|
External (optional)
|
Sensor
|
3D accelerometer sensor, temperature sensor
|
Antenna
|
external 4G/GPS antenna
|
GPS sensitivity
|
-162dBm
|
Positioning Accuracy
|
2.5m
|
4G Frequency bands
|
FP600 Plus A (US/Canada/Mexico) 4G LTE: B2/B4/B12 3G WCDMA: 850/1700/1900MHz
|

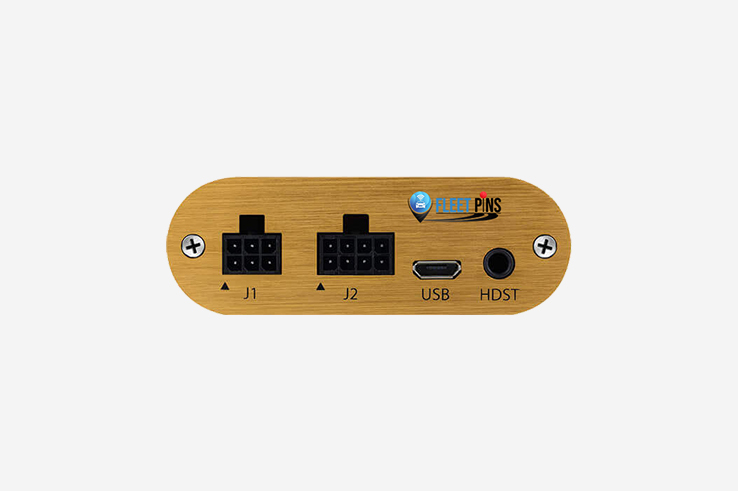

I/O Port
|
2 digital inputs (12-24V), 2 digital output (12-24V) 1 analog inputs (0-5V) Fuel sensor 1 Audio 1 USB port 1-Wire® temperature sensor
|
